The staining patterns on TMA images can vary highly, even for those with the same score. Thus, it is desirable to look for image features that are relatively stable across images of the same score. The feature we use is a spatial histogram matrix (or gray level cooccurrence matrix in the remote sensing literature [17]), which is commonly used for textured images. It is a suitable image feature because TMA images belong to one of the two major classes of textured images—images taken from very far away in the sky (for example, remote sensing images) and those taken under a high resolution microscope. Indeed, the spatial histogram has been used in literature for TMA images [33] and fares well.

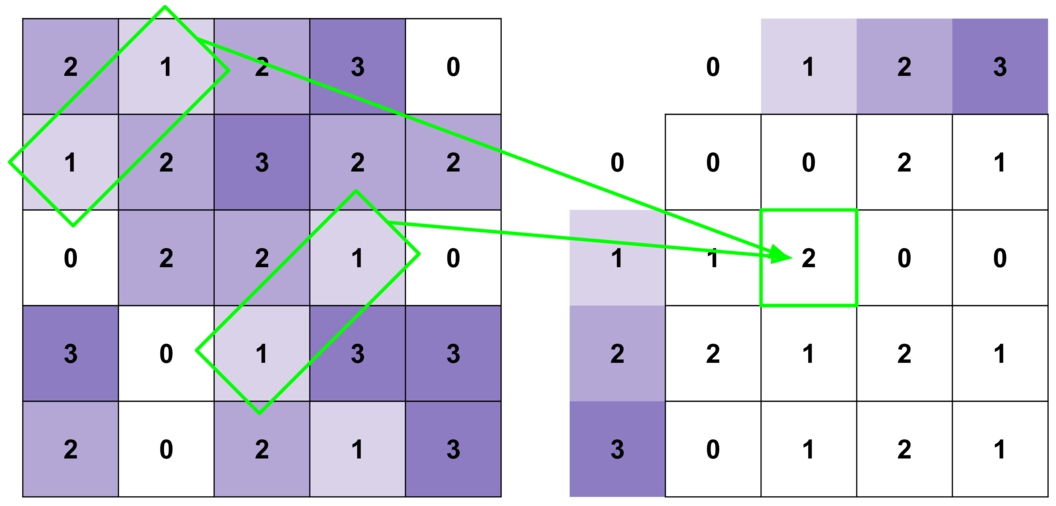

Similar to the conventional histogram, the spatial histogram is a collection of counting statistics about pairs of adjacent (or neighboring) pixels in an image and represented as a matrix. In generating a spatial histogram, we only consider neighboring pixels that have a predefined spatial relationship. That is, the two pixels need to have a pair of given pixel values and are neighbors along a certain direction. A typical choice for the direction is the ${45^{\circ }}$ direction in the image grid. Figure 3 shows an example of such neighboring pixels where the pairs of pixels of interest are marked by green rectangles and both have grey value 1. The counting statistic is the total number of times such a pair occur in the image grid along the ${45^{\circ }}$ direction, and this gives the value of the (1,1)-entry of the spatial histogram matrix. Similarly, pairs of pixels along the same direction but with pixel values i and j, respectively, would produce a counting statistic for the ($i,j$)-entry of the matrix, and so on.

One can choose to use a different spatial relationship, like pairs along a direction of ${0^{\circ }}$ or ${135^{\circ }}$ etc in the image grid, and the difference in TMA image scoring would be small. Also, one can extend the distance between the neighboring pixels. The default distance is 1, indicating immediate neighbors. The two pairs of example pixels in Figure 3 all have a distance 1, while a distance of 2 or larger would indicate a larger staining pattern. In this work, a spatial distance of 2 is used.

One nice feature about the use of spatial histogram is dimension reduction. The TMA images are large in size, and those from the Stanford TMA image database [23] have a size of $1504\times 1440$. Directly working with such images would require enormous computing power and memory, and worse still, that will lead to the curse of dimensionality, as each image would be treated as a huge vector of a dimension more than 2 million (i.e., $1504\times 1440$). As the gray value of TMA image pixels have a range between 0 and 255, the spatial histogram will reduce the data dimension to a value, $256\times 256$, much smaller than that from the original image. One step further is to apply a quantization to the image gray values. That will lead to an even smaller spatial histogram matrix. We follow work in [33], and apply a linear quantization to the gray values into 51 levels. That is, a gray value of $5\cdot x+y$ for $0\le x\le 50$ and $0\le y\le 4$ will be transformed to $x+1$ (255 is converted to 51 for simplicity). Thus the spatial histogram matrix now has a dimension of $51\times 51$, and a vector (of dimension 2601) formed by collapsing this matrix is used as input to the RF classifier so that computation can be done very efficiently. Importantly, this also makes the resulting image features stable against small variations in image pixel values due to varying physical conditions such as lighting or illumination.

RF is used as the classification engine for our TMA image scoring algorithm. RF is an ensemble of decision trees, and each tree is grown by recursively splitting the data. At each node split, RF randomly samples a number of features (called number of tries) and selects one leading to their best partition of that node, according to some criterion. Each tree progressively narrows down the decision for an instance. The node split continues until there is only one point in the node (for classification) or when the node is pure (i.e., all the points in the node have the same label). At classification, an instance receives a vote on its class label from each tree in RF, and the final decision given by RF is a majority vote on the class labels, according to the number of votes that each label gets from all trees.

Many studies have reported excellent performances of RF [2, 9]. For TMA image classification, previous studies [19, 33] also show that RF outperforms competitors like SVM [10] or boosting [13]. Compared to its competitors, RF scales well against some main challenges in TMA image scoring, including high dimensionality and label noise, thanks to its strong feature selection ability and ensemble nature. RF is easy to use with very few tuning parameters—often one just need to set the number of trees and the number of tries at each node split.

Transfer learning [8] is an emerging learning paradigm to address the problem of insufficient training data when there is a large set of auxiliary data (called auxiliary set) that entails knowledge helpful in solving the original problem. Transfer learning algorithms can be classified as instanced-based, mapping-based, representation-based, or feature-based transfer learning [29]. Instance-based transfer learning [11] transfers knowledge in the form of enlarging the original training set by finding instances in the auxiliary set that are consistent with the hypothesis learned on the original training set (such instances are called transferable). Mapping-based transfer learning [31] learns semantically sensible invariant representation across the original and auxiliary sets. Feature-based approaches [22] learn features that would help the learning of the original problem. Representation-based [15, 24] tries to find representations that can be transferred. Recently, deep transfer learning [14] has become very popular and achieves impressive performance in a number of domains, for example, large natural language processing systems such as BERT [12] and GPT-3 [3], and pre-trained image models [30]. The literature on transfer learning is enormous, and we can only mention a few here. More discussion can be seen in [26, 29, 1] and references therein.

The lack of a large auxiliary dataset makes transfer learning particularly challenging for the problem of TMA image scoring. The big family of deep neural networks based transfer learning algorithms are not applicable here due to the reliance on the training of large deep networks, which inevitably requires a huge training set. In the scoring of TMA images, there are multiple auxiliary sets available as images from a number of other cancer types can look very similar to those of the cancer type of interest. However, none of the auxiliary sets is large enough for the typical deep neural networks based approaches to be feasible. Thus, we now have a new problem setting for transfer learning, and we wish to enable knowledge transfer from multiple small auxiliary sets.

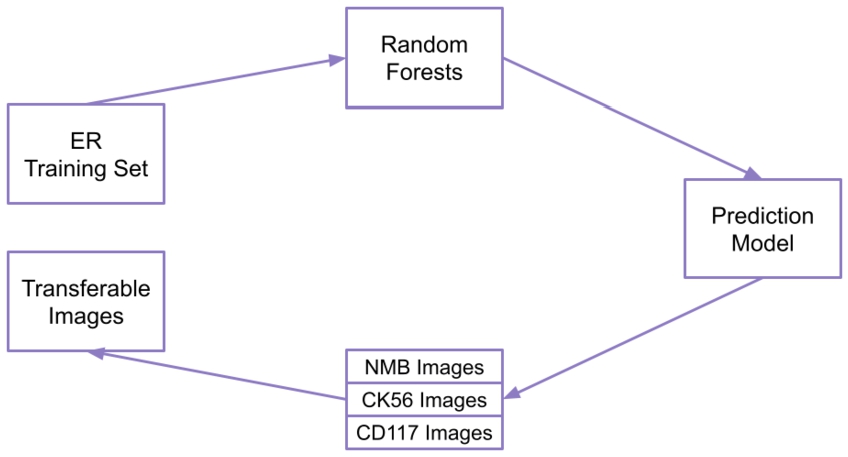

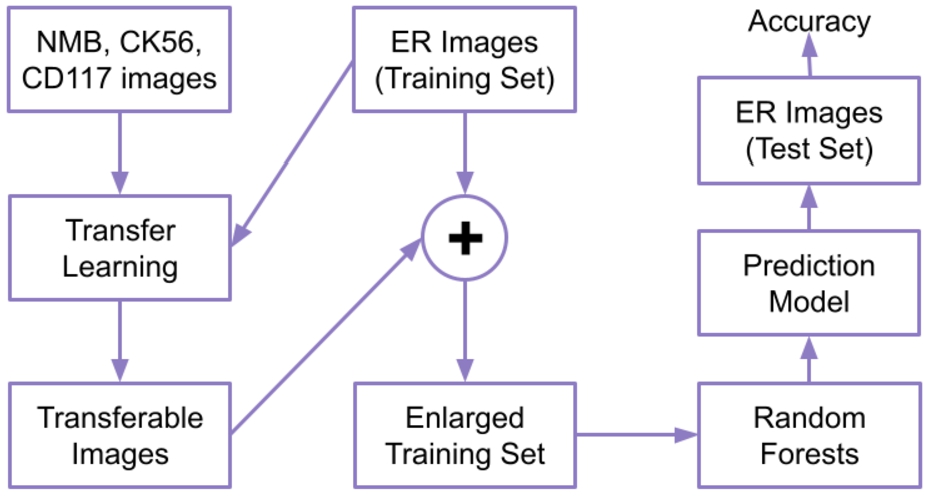

The approach we take is instance-based transfer learning, and Figure 4 is an illustration of the algorithm. We first fit a prediction model (called original hypothesis) using RF on the original training set. Then from the auxiliary set, we try to identify TMA images that are consistent with the original hypothesis. Clearly we do not require a large auxiliary set to achieve this. We can add those transferable images to enlarge the original training set. For a small training set, increasing its size will likely improve performance on the test set. In Figure 5, the left 3 columns show example images for the target cancer type—breast cancer (indicated by ER) where each row corresponds to a different score. The right columns are example images from a different cancer type (marked by NMB, CK56 and CD117, respectively) that look similar (to certain extent) to the breast cancer images with the same score.

In our algorithm, transfer learning is implemented as function, $tmaTransfer()$, which finds transferable images from a given auxiliary set. The main function, $tmaScore()$, calls $tmaTransfer()$ to obtain transferable images from other cancer types, fits model on the enlarged training set via RF, and then reports final results on the test set.

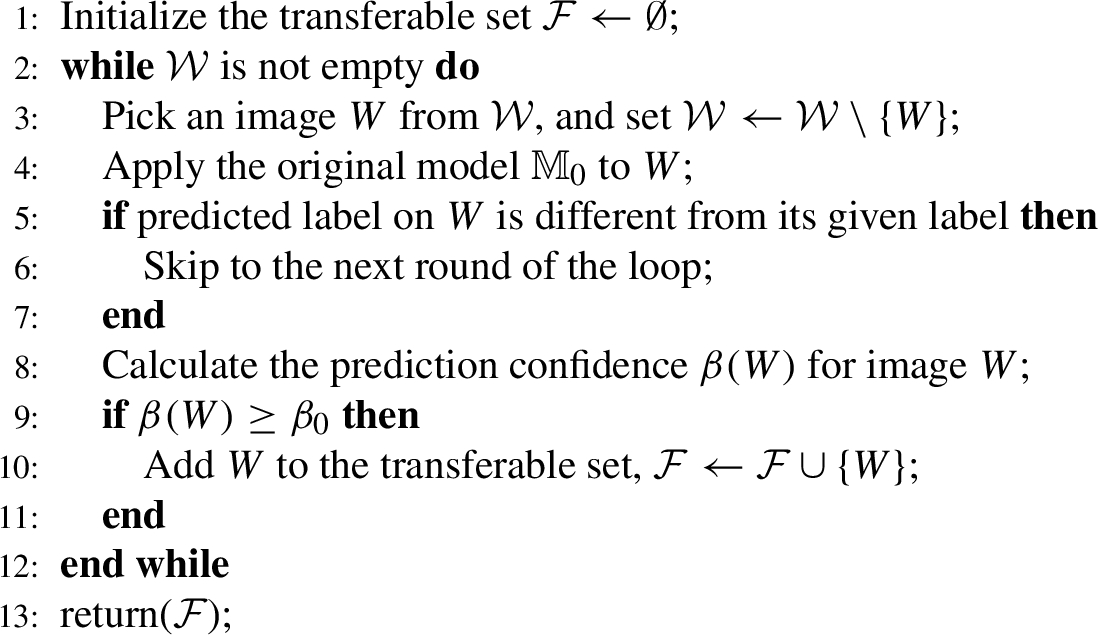

$tmaTransfer()$ is implemented as follows. We first fit a classification model, ${\mathbb{M}_{0}}$, by RF on the original training set ${\mathcal{T}_{0}}$. Then we apply ${\mathbb{M}_{0}}$ to the set of auxiliary images, $\mathcal{W}$. If the predicted label for an image, $W\in \mathcal{W}$, is the same as its given label (note the label for these images in the auxiliary set are known since they come with the TMA images in the Stanford database), then we say image W (along with its label) is consistent with the original model hypothesis ${\mathbb{M}_{0}}$. As there might be label noise for image W, we only transfer images that are predicted more confidently. The confidence in prediction can be estimated from the number of votes W receives on different class labels (or scores) from trees in RF. If the majority class gets substantially more votes than other classes, then we say the instance is predicted with high confidence. Here, the majority class is the one that receives the most votes. An easy way to estimate the confidence is to use the difference in the fraction of votes received for the top and the second majority class (the class that receives the second most number of votes). Let ${n_{1}}(W)$ and ${n_{2}}(W)$ be number of votes W gets on the top and second majority class, and T be the number of trees in RF. We can estimate the confidence in predicting instance W as follows So $\beta (W)$ has a value in the range $[0,1]$, and a TMA image W in the auxiliary set is selected if it is classified with a confidence larger than a predetermined level ${\beta _{0}}$. The choice of ${\beta _{0}}$ seeks to include TMA image instances that are valuable to the original problem. Singh and his coauthors [28] study the contribution of individual data points to algorithmic performance in semi-supervised classification problem, and they find that data points that are along the decision boundary barely help, while the value of a data point increases when the data point is slightly away from the boundary. Our definition of confidence aims to avoid data points that are along or very close to the decision boundary (such data points would be classified with very low confidence), while trying to include data points that are slightly away from the decision boundary. Note that a too big value of ${\beta _{0}}$ is not desirable either, as that will cause the inclusion of only data points far away from the decision boundary. Let $\mathcal{F}$ denote the transferable set (which is the set of images transferred from the auxiliary sets). The $tmaTransfer()$ function is implemented as Algorithm 1.

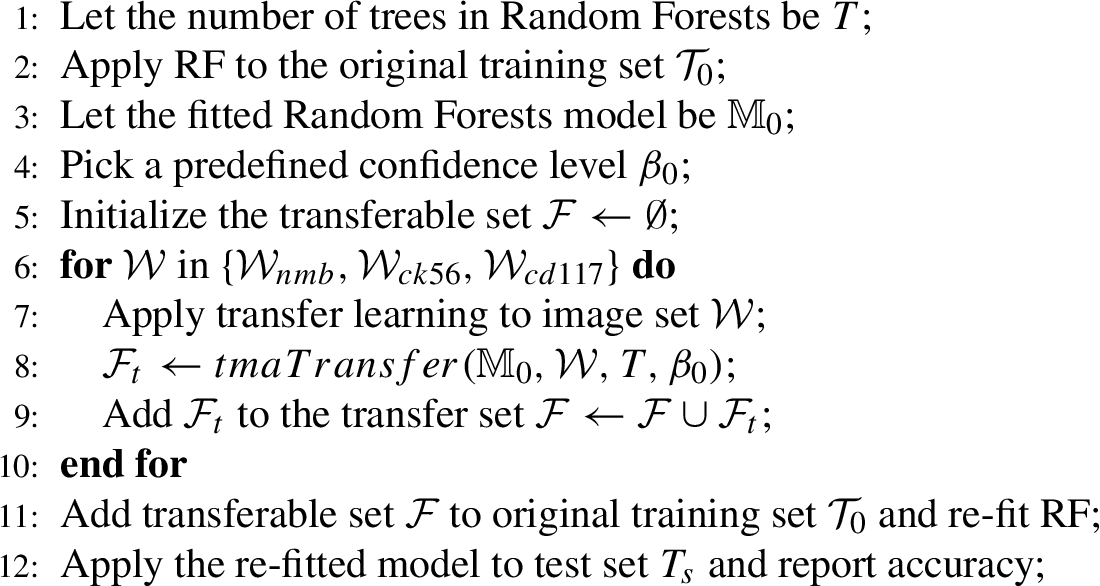

To describe algorithm for the main function $tmaScore()$, assume that the other cancer types for transfer learning are associated with biomarkers NMB, CK56 and CD117 for simplicity of description. Let the set of auxiliary images for these cancer types be denoted by ${\mathcal{W}_{nmb}}$, ${\mathcal{W}_{ck56}}$, ${\mathcal{W}_{cd117}}$, respectively. Function $tmaScore()$ first fits a prediction model, ${\mathbb{M}_{0}}$, from the original training set using RF. Then, it identifies the transferable set from each auxiliary set in $\{{\mathcal{W}_{nmb}},{\mathcal{W}_{ck56}},{\mathcal{W}_{cd117}}\}$. Add the transferable set to the original training set ${\mathcal{T}_{0}}$, re-fit the prediction model, then apply it to the test set and report results. The main function is implemented as Algorithm 2.

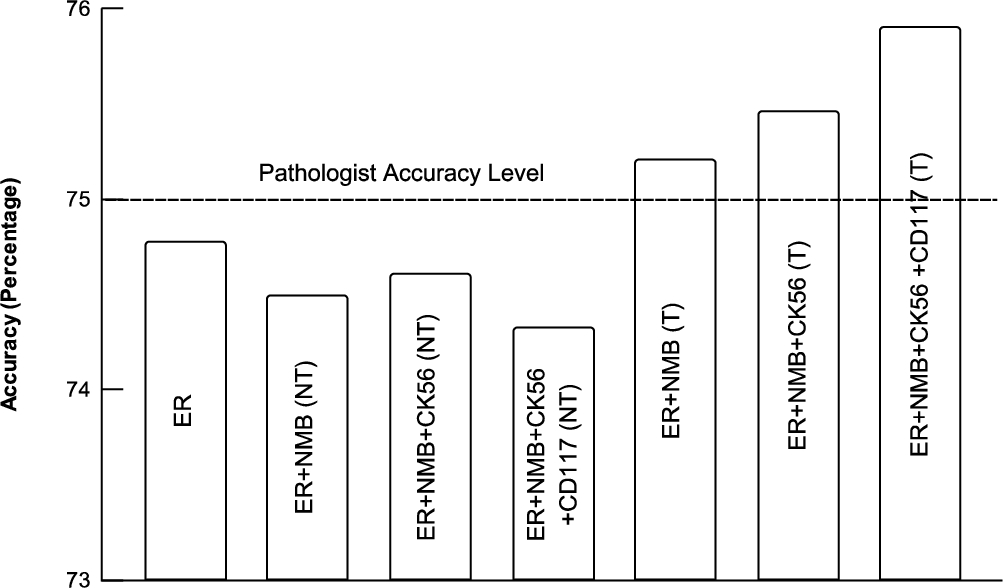

The evaluation metric is the test set accuracy, which is the percent of test images with a predicted class label agreeing with the given one (that is, the label comes with the database). The results are shown in Figure 7. The accuracy achieved with transfer learning over auxiliary sets associated with NMB, CK56 and CD117 is 75.9%, outperforming the algorithm without transfer learning (shown as the first bar in the figure). The accuracy of pathologists is estimated to be around 75–84% [33], so transfer learning allows our algorithm to achieve the accuracy level of pathologists. It should be noted that the gold standard of comparison vs pathologists in this case would be through consensus scores produced by a group of well-trained pathologists. However, in the lack of consensus pathologists’ scores, estimation by [33] could be viewed as giving the accuracy level of pathologists (on the ER images). It is interesting to see that the achieved accuracy increases progressively when we apply transfer learning over more auxiliary sets, e.g., in the order of over ${\mathcal{W}_{nmb}}$ only, over two auxiliary sets $\{{\mathcal{W}_{nmb}},{\mathcal{W}_{ck56}}\}$, and over three auxiliary sets $\{{\mathcal{W}_{nmb}},{\mathcal{W}_{ck56}},{\mathcal{W}_{cd117}}\}$. Note that comparison with other popular classifiers such as support vector machines and boosting with the spatial histogram matrices as inputs was made previously in [33] for which an accuracy at 65.24% and 61.28% were reported, respectively. The reason why SVM and boosting substantially underperformed is possibly due to the fact that these two classifiers are not able to handle high dimensional and possibly noisy (in labels) inputs well, while RF has strong built-in ability in feature selection with high dimensional inputs and is also remarkably resistant to label noises.

We also conduct experiments by simply combining the training set of TMA images for ER with images in auxiliary sets ${\mathcal{W}_{nmb}}$, ${\mathcal{W}_{ck56}}$ and ${\mathcal{W}_{cd117}}$. This actually leads to a decrease in accuracy compared to that without transfer learning, as shown in the second through the fourth bars in Figure 7. Although directly combining data from the auxiliary sets greatly increases the size of the training set, it also makes the data a lot more heterogeneous thus more challenging for classification as we now have to accommodate images of sub-models within the same class label. In comparison, transfer learning with our approach over images from other cancer types, even with different distributions, allows to improve the accuracy if we can properly control the confidence level.

We adopt instance-based transfer learning, and the particular scheme we propose improves the accuracy of TMA image classification. Our algorithm could be understood from recent theoretical developments in transfer learning, and is also empirically supported by experiments.

Transfer learning typically requires similarity in the distribution between the original and the auxiliary set. Recent work towards understanding of transfer learning focuses mainly on relaxing this ideal condition along two lines. One is the covariate-shift model where the marginal distribution of the original and the auxiliary data are different but their induced decision rules (or hypothesis) are similar. Here the marginal distribution refers to the probability distribution of the TMA images or their spatial histograms, while the induced decision rule is the rule that decides which class label (score) a TMA image gets given the pixel values or the spatial histogram of an image (i.e., the classification model learned by RF in this work). Kpotufe and Martinet [21] study, under the covariate-shift model, how much the target performance is impacted by sample size and the difference in the original and the auxiliary distribution. The other is the posterior-drift model where the marginal distribution of the original and the auxiliary data are similar but their induced decision rules could be very different. Cai and Wei [5] study how fast the estimated decision rule converges to its limit in terms of the difference in the induced decision rules between the target and auxiliary data. For the scoring of TMA images, clearly the distribution of the original and the auxiliary data are different, and so are the induced decision rules. Our approach can be viewed as trying to satisfy the assumption of the covariate-shift model, i.e., it tries to find a subset of the auxiliary data such that the induced decision rule agrees to that from the original data. This is achieved by searching from the auxiliary set those TMA images with the same label as the predicted one under the decision rule learned from the original data (i.e., conformal to the original hypothesis). This effectively overcomes the difficulty in requiring a similar induced decision rule between the original and the entire auxiliary data. Thus, our approach gives a solution to the challenging problem of enabling knowledge transfer from multiple small auxiliary sets with each inducing a potentially different decision rule from that on the original data.

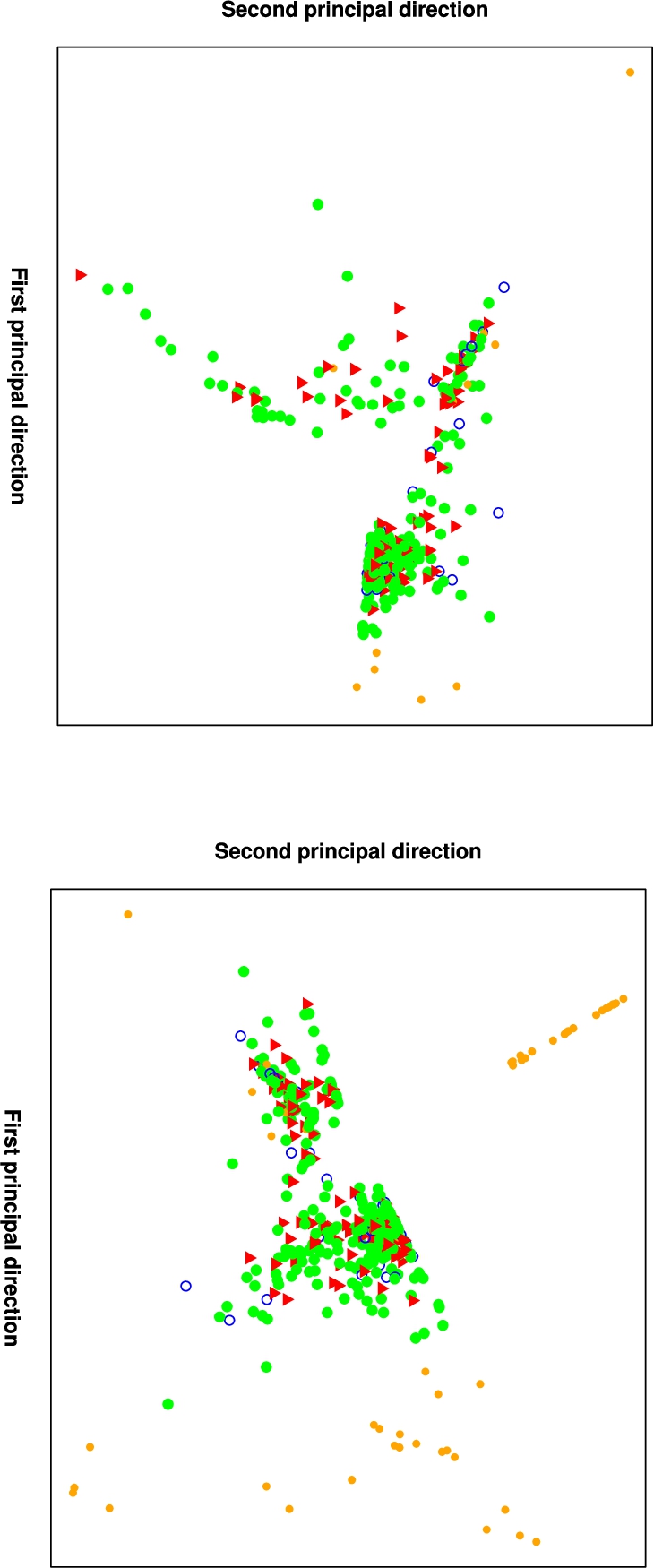

Next, we conduct some experiments. We first produce a visualization of the original training set (corresponding to breast cancer) and that enhanced by transfer learning from other cancer types, including those associated with NMB, CK56 and CD117. Each image in the training set can be viewed as a point in the high dimensional space, and the points are plotted along the first and second component from a principal component analysis [18] of the data. From Figure 8, it can be seen that for the enhanced training set, the separation of points becomes larger. In particular, points with color orange now become visible (previously they are mostly hiding among points with other colors or labels); some blue points are also better separated from the green and red point clouds. A better separation between classes would make the classification task easier, thus a higher accuracy can be expected. Indeed, we can get a more precise characterization of the amount of class separation by the class separation ratio which is the ratio of the within-class sum of squared distances out of the between-class sum of squared distances calculated over all pairs of classes, and $SS{W_{i}}$ and $SS{B_{i,j}}$ are defined as where $distance(a,b)$ is the Euclidean distance between points a and b. The class separation ratio ρ measures the quality of clustering, so it gives hint on the difficulty in separating different classes. A smaller value of ρ indicates that the within-class distances are small relative to the between-class distances, thus a better separation of classes. The mean class separation ratio is calculated as 15.6668 and 12.1379, averaged over 100 runs on the original and transfer learning enhanced training sets, respectively. This implies that, for the enlarged training set, different classes are better separated. This is consistent with our visualization and experimental results, thus giving empirical support to the transfer learning scheme we propose. Further experiments are expected to better understand this, which we leave for future work.
